Aggregation Units

Your step between a full automatic case packer palletizer and a standard manual Aggregation station

Key Features

Operated by one operator.
Up to 10 shippers per minute.
Automatic case bottom folding.

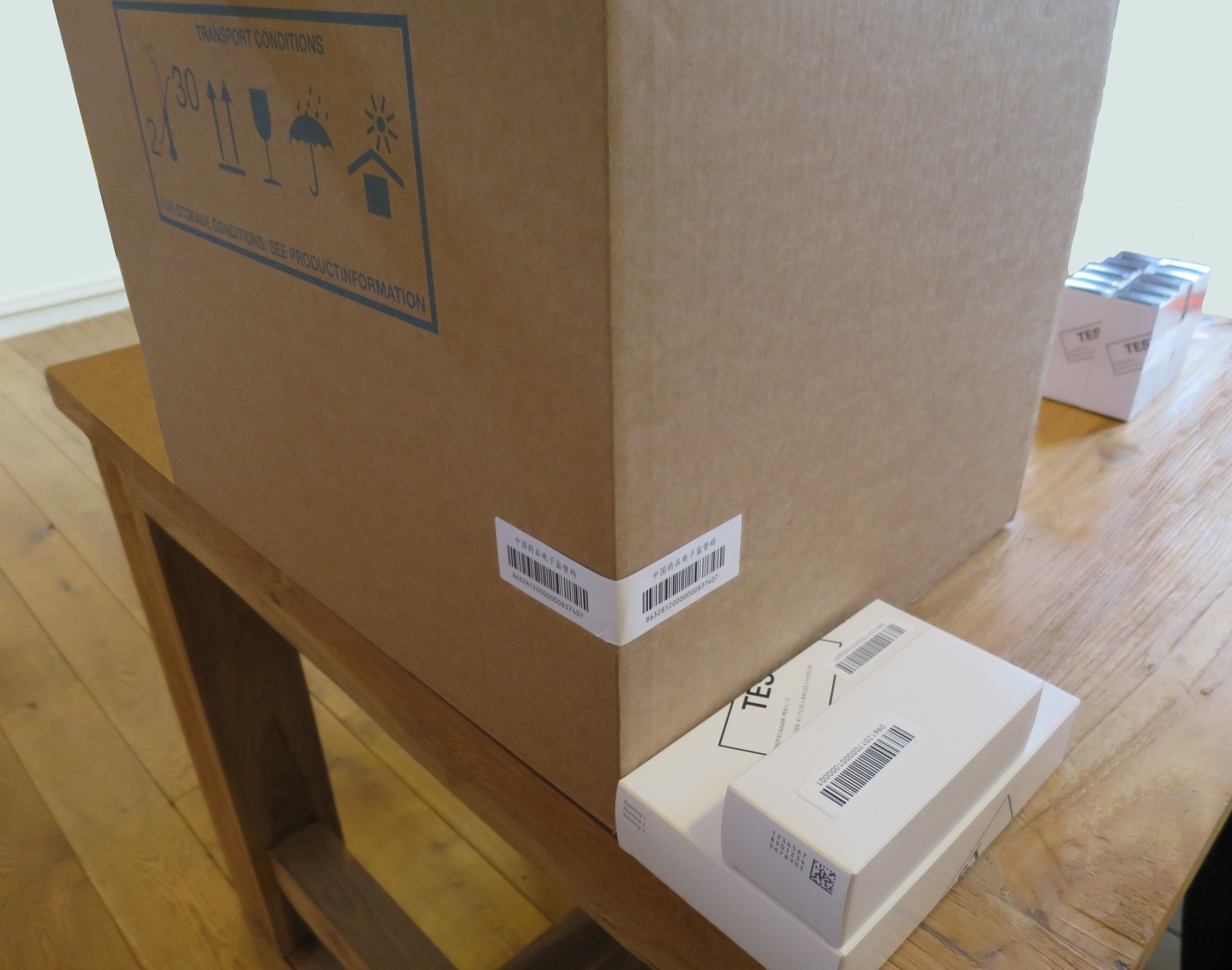

Automatic corner wrap case label printing and applying.
Fail safe sealing the aggregated case with tape.
Height adjustable for ergonomics.
Adjustable for small and big shipper cases.

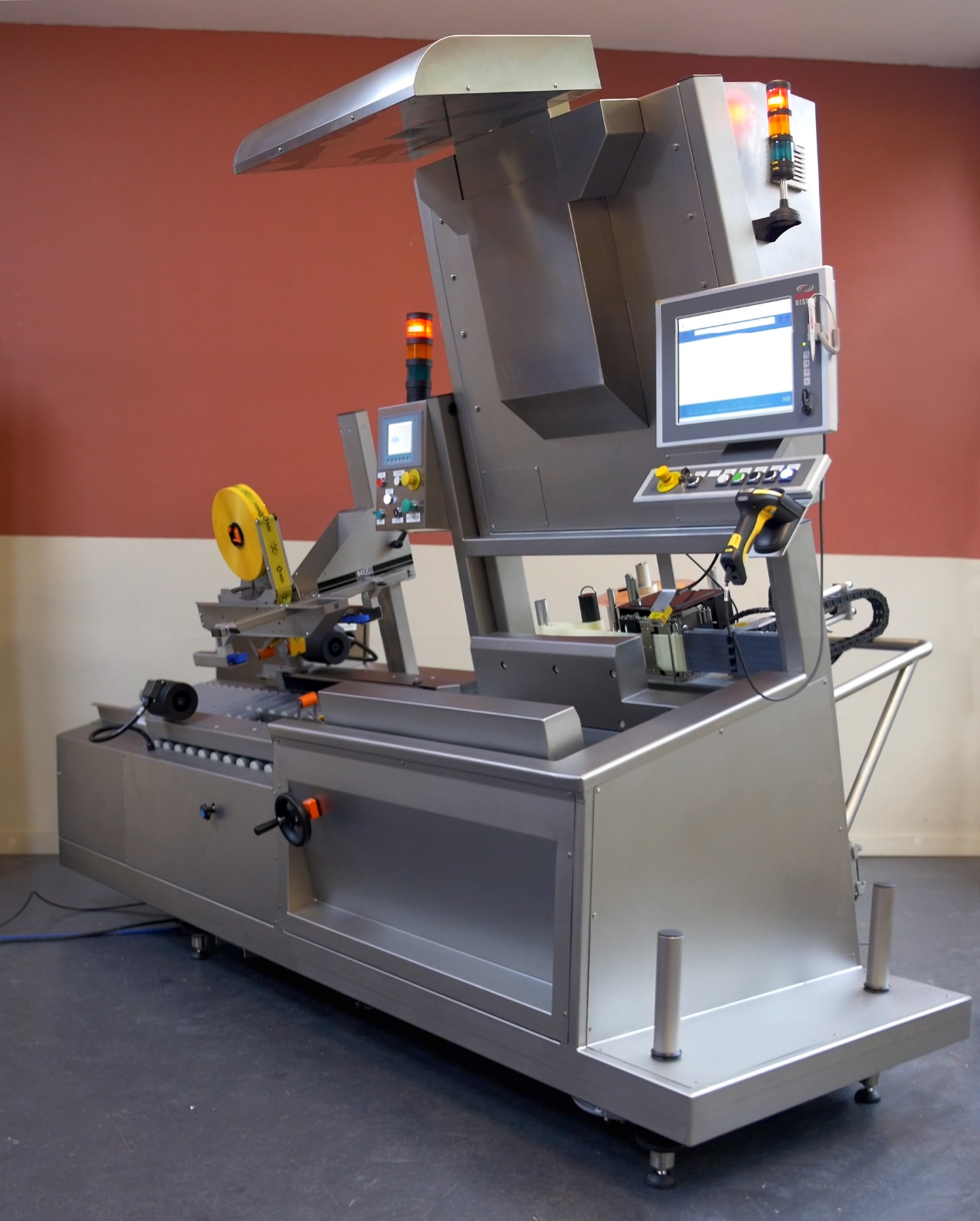

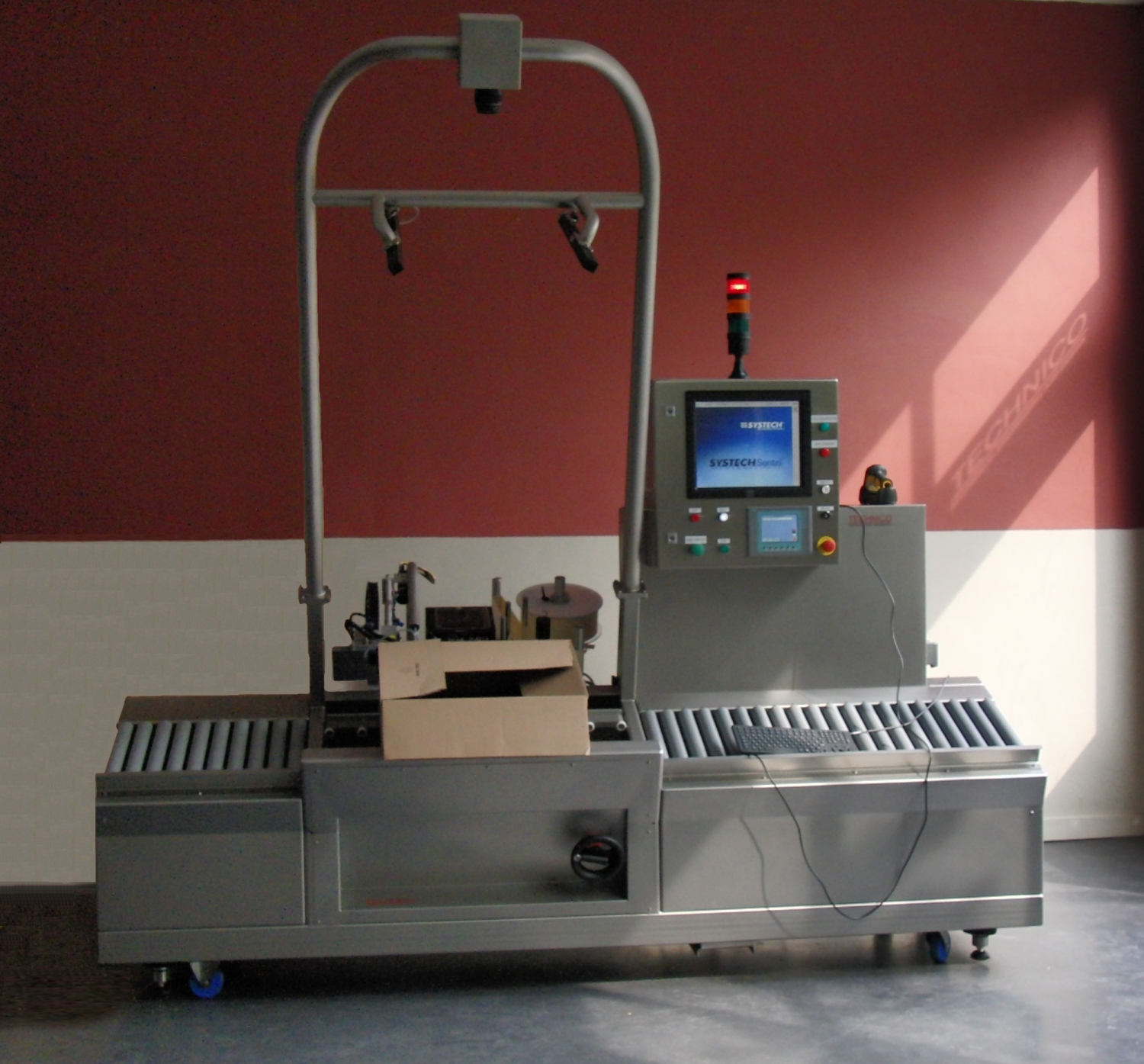

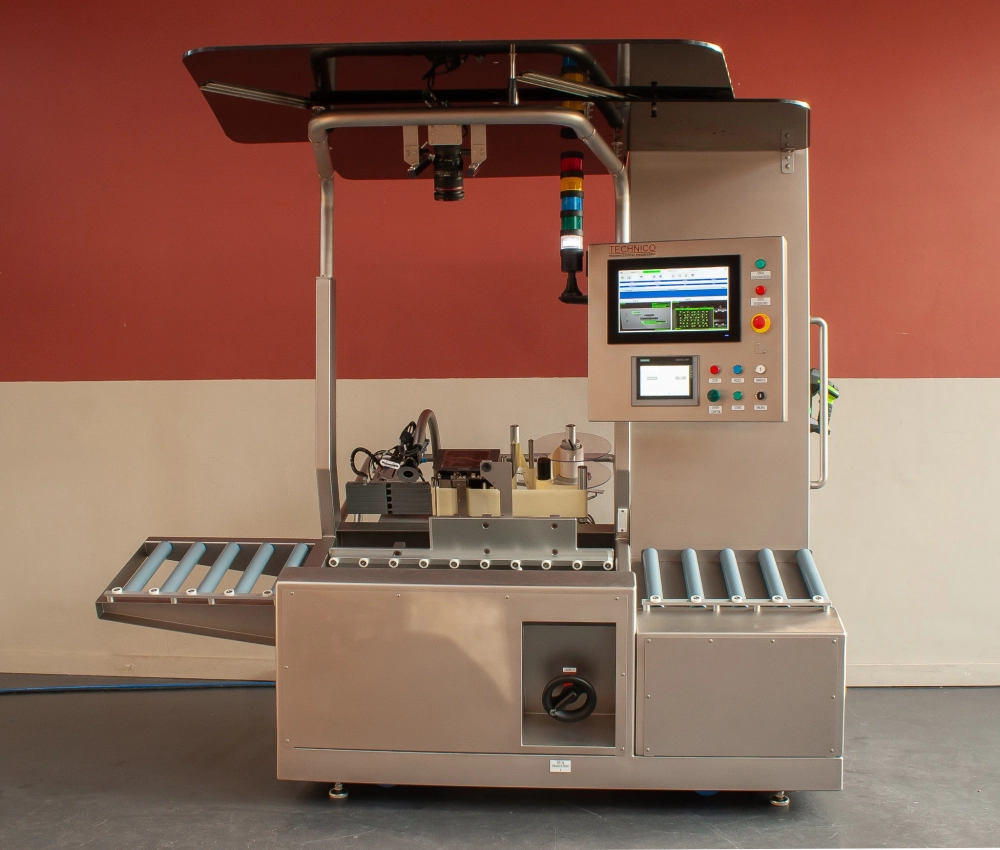

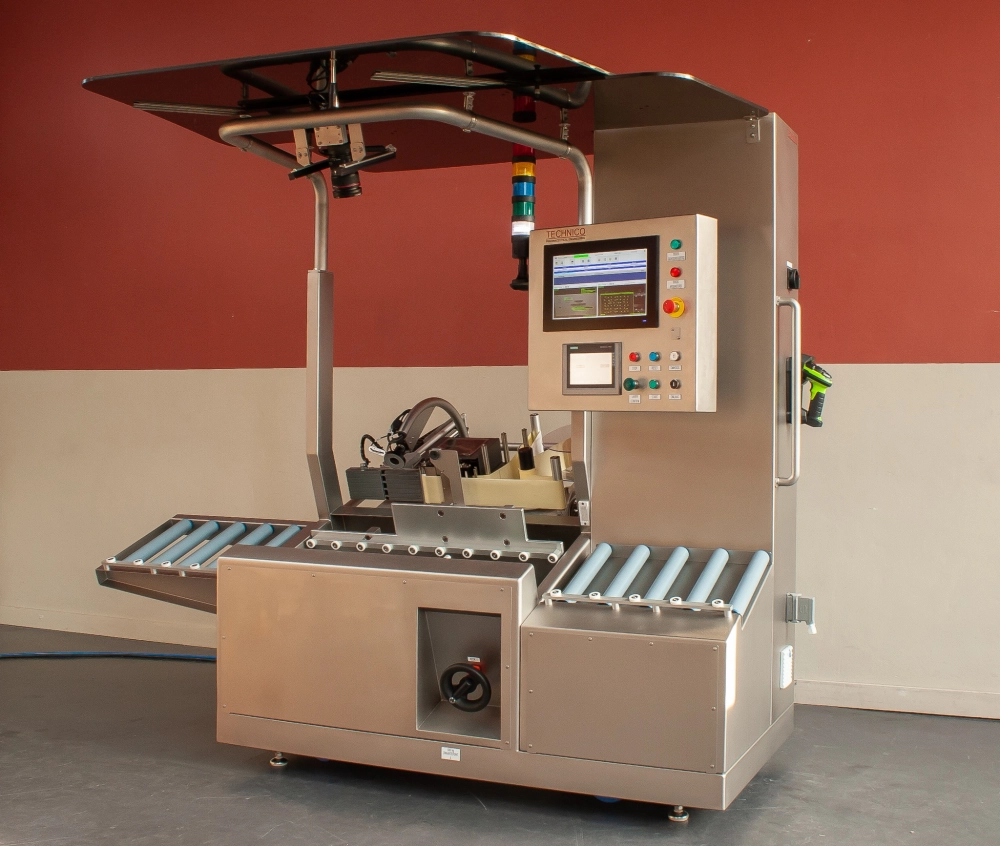

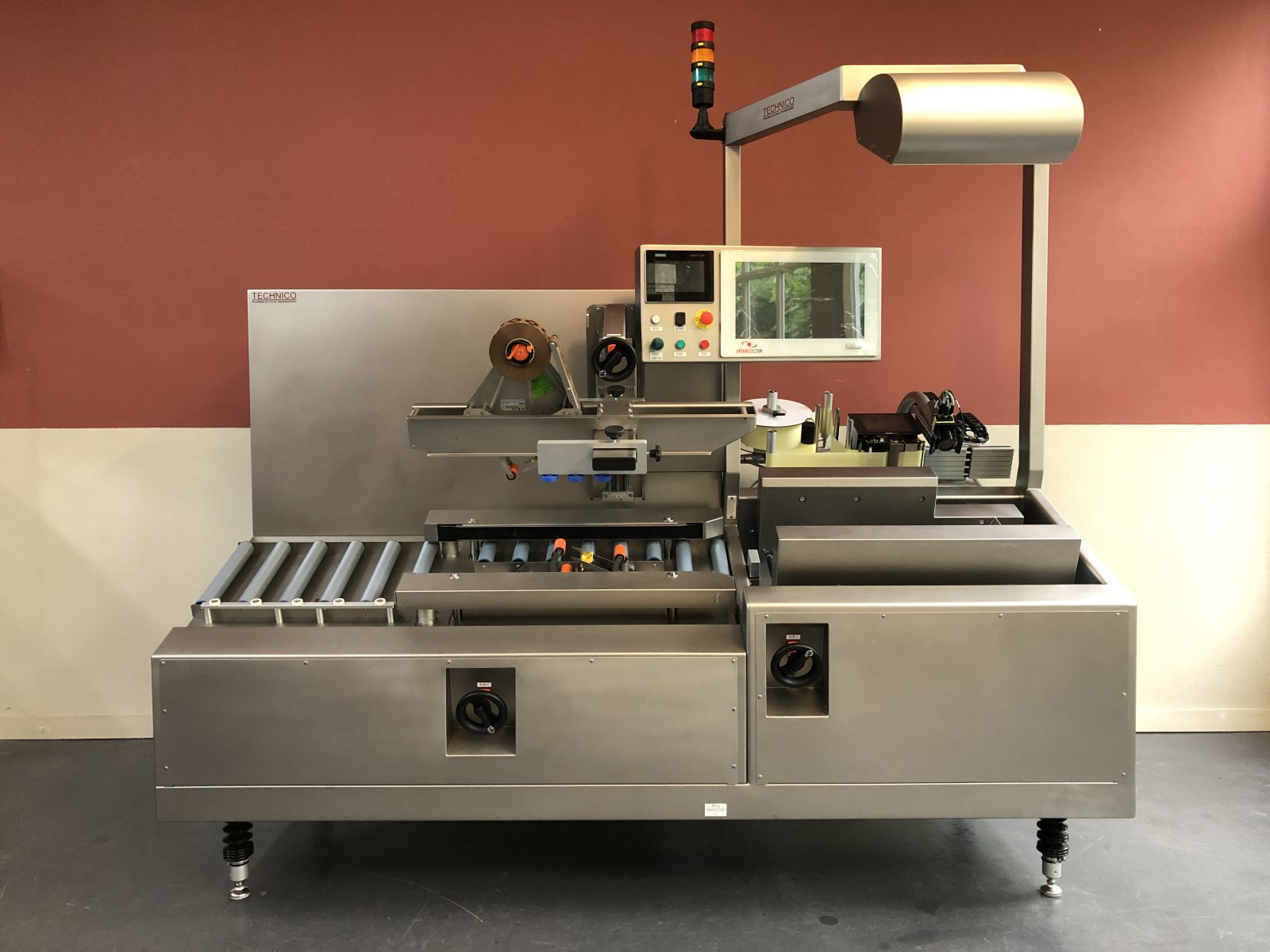

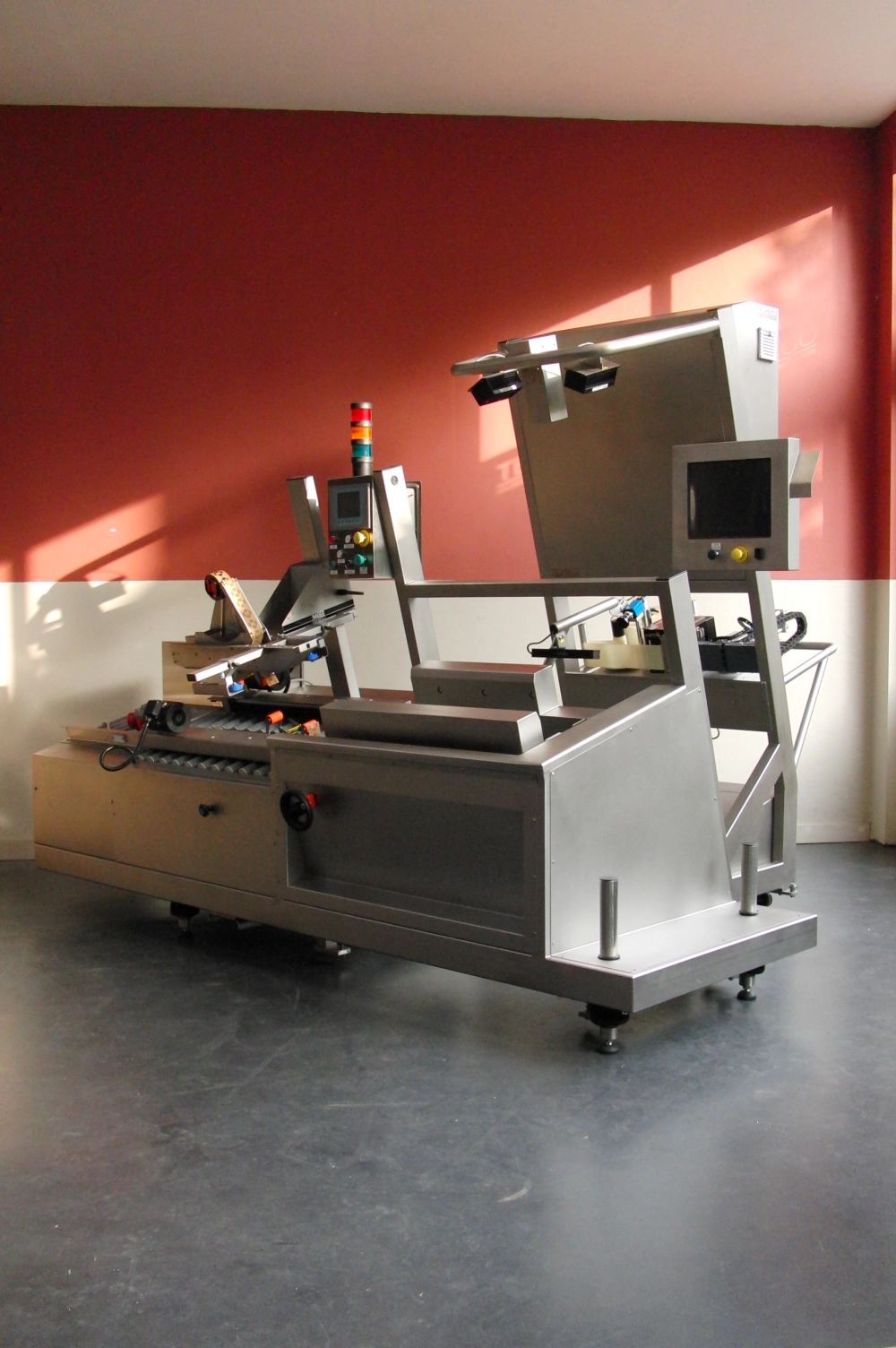

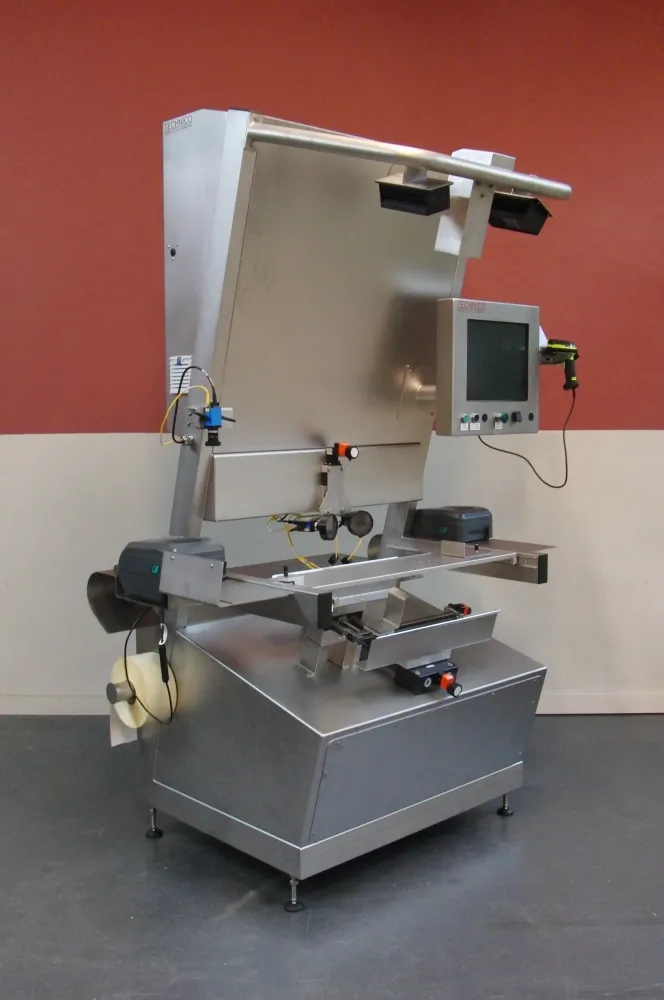

This automatic case aggregation system provides an efficient and flexible intermediate step between a fully automated case packer/palletizer and a standard manual aggregation station, offering an optimal balance between automation level, investment, floor space and operational flexibility.

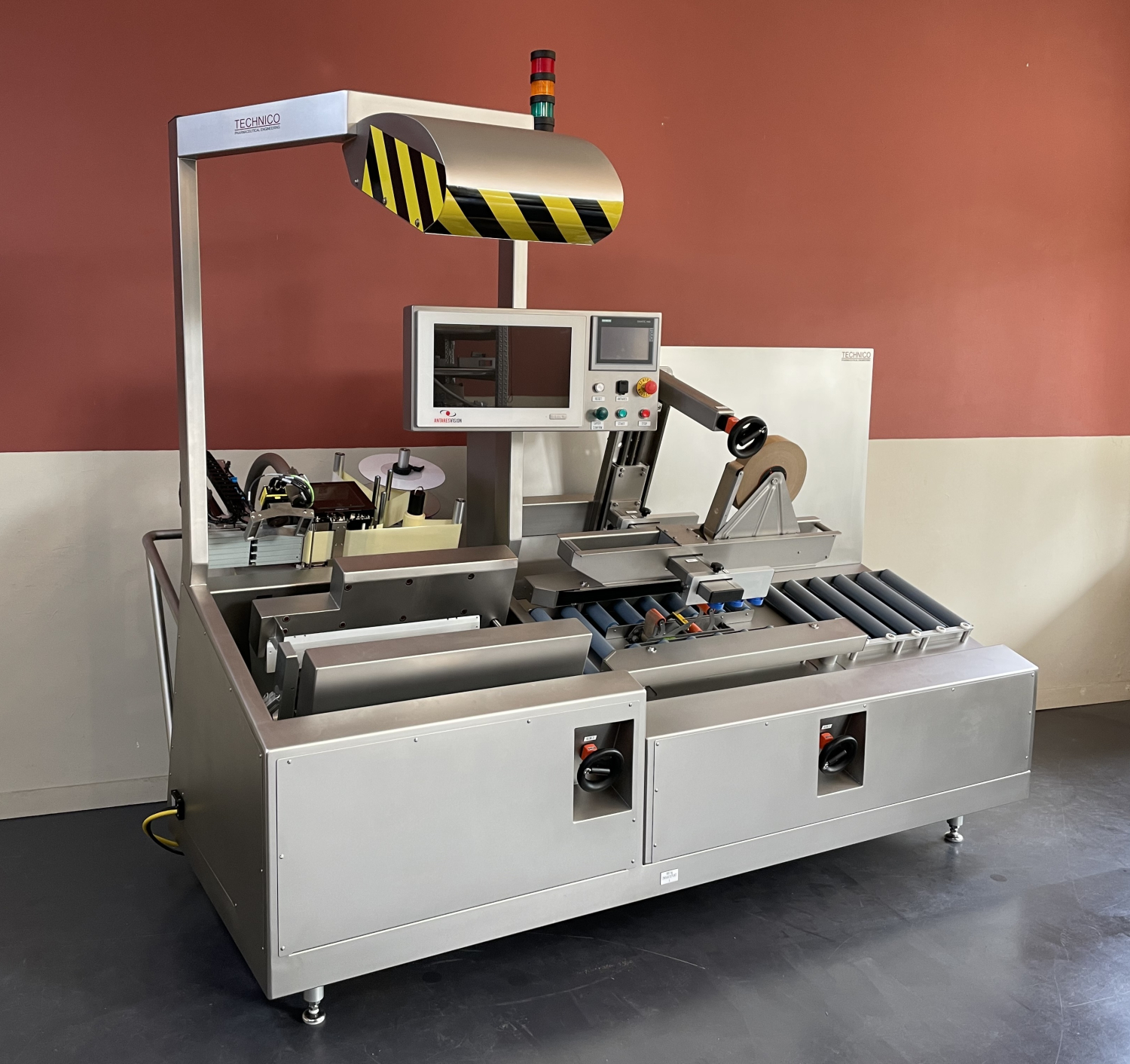

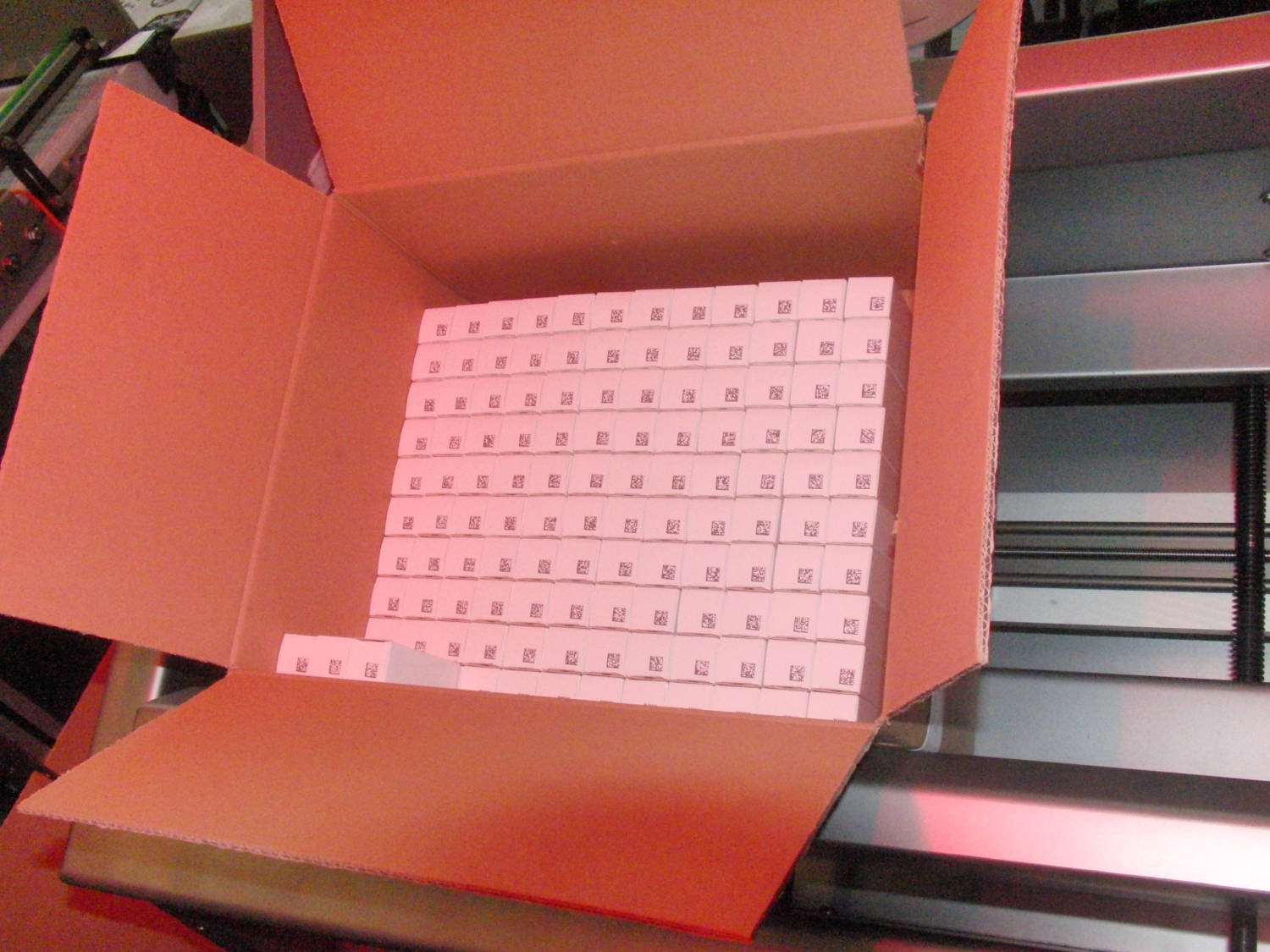

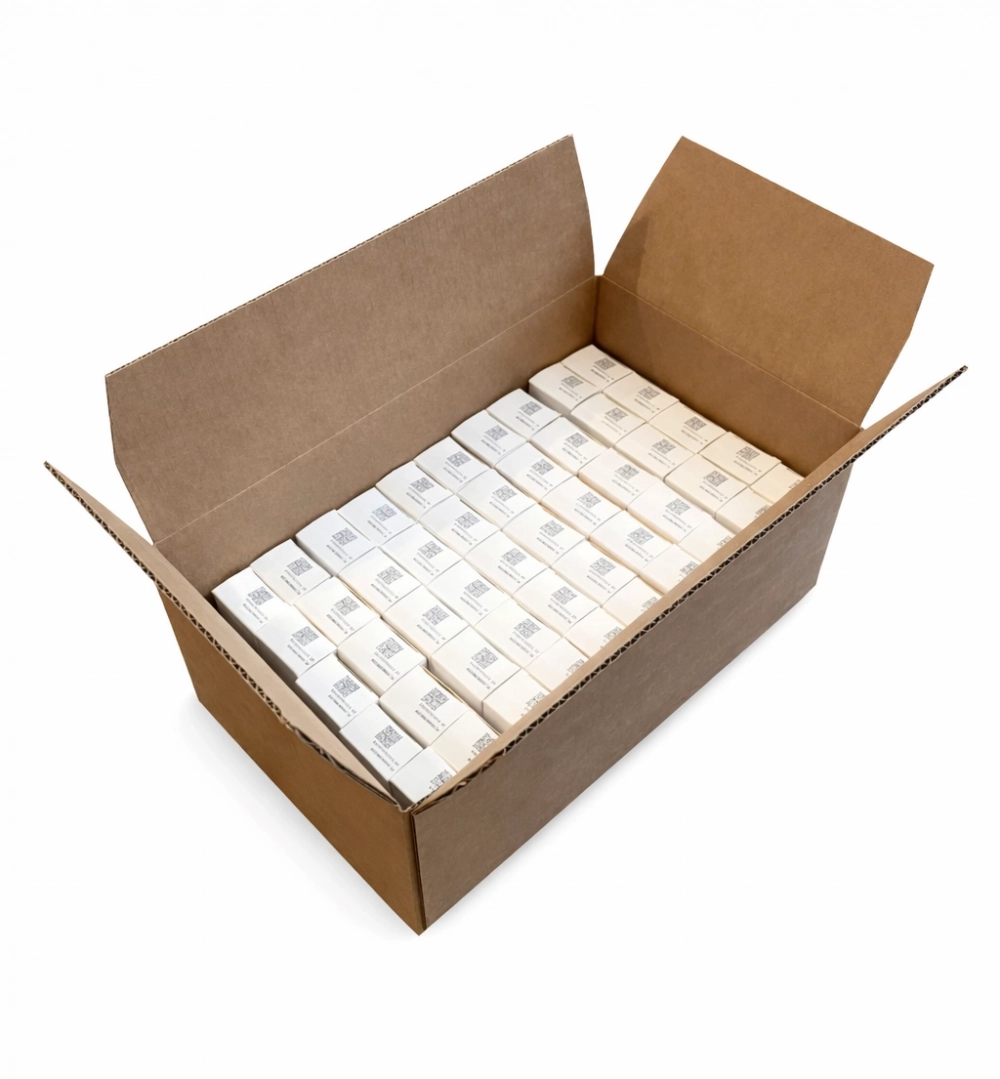

The aggregation systems are designed for serialized pharmaceutical products. The aggregation unit folds automatically the bottom of a shipper case, prints a unique label and applies it on the corner of the shipper case. The shipper can be loaded manually with single cartons or bundled cartons. A high resolution camera reads the serialized code on each carton per layer (Pack by layer). After the last layer has been confirmed, the shipper will be closed by an integrated tape-sealer.

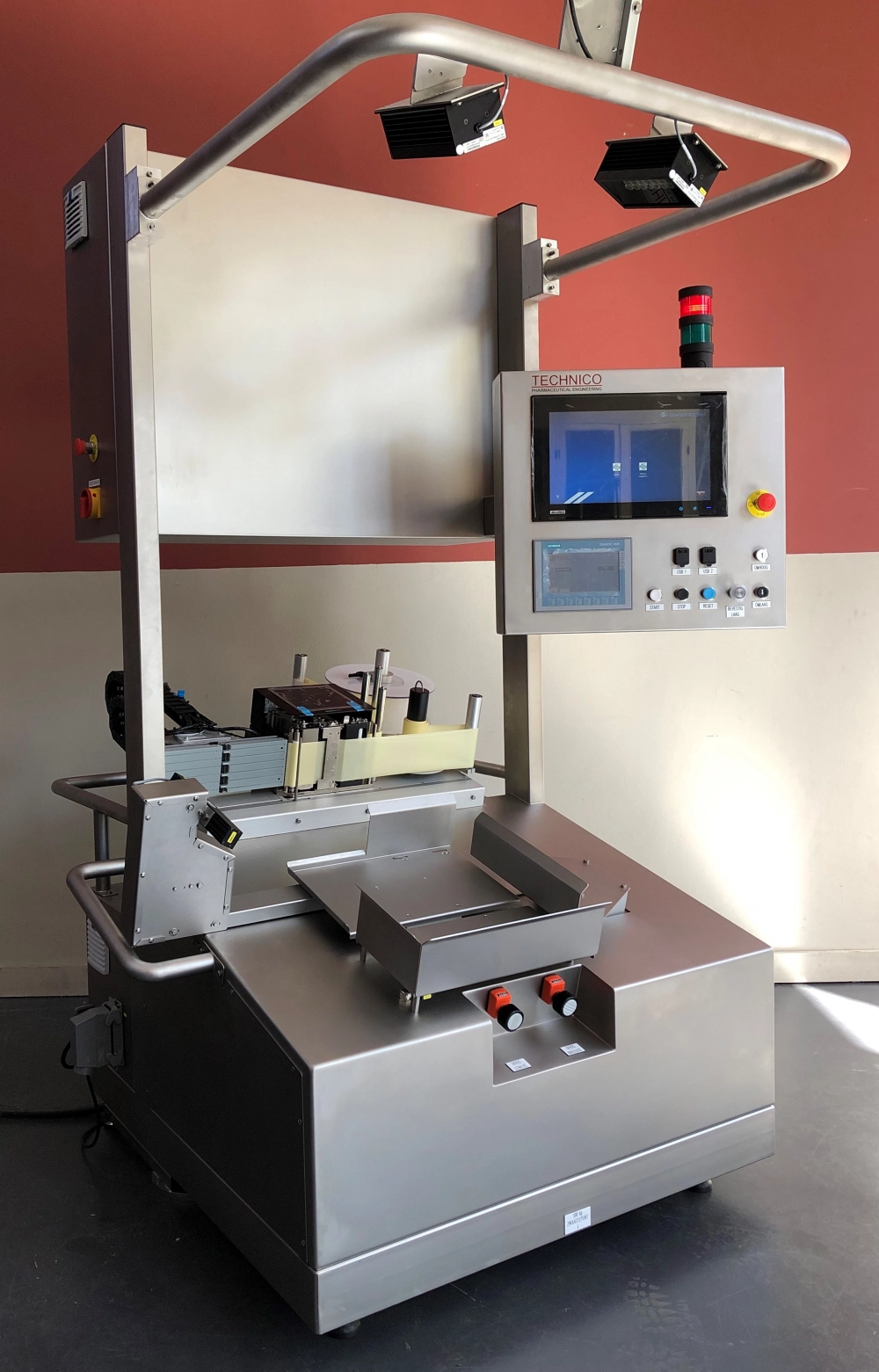

This GMP-compatible machine has an ergonomic design and is easy to clean and can be operated by one operator.

Design Options

Equipped with vision equipment from Systech, Antares or other brands.
Expansion with a robot (cobot) for loading is possible.
With or without a case bottom folder.
With or without a tape-sealer.
Used in- or offline.
With or without electric height adjustment in order to improve ergonomics for operators.
As a mobile version, which can be moved to different production lines.
A transit direction to the left or to the right.

Customized to your needs

The automatic case aggregation unit can be integrated into a production line or purchased as a stand-alone unit. Technico Pharmaceutical Engineering’s aggregation units are customizable to handle the desired case size. For our standard machines, this ranges from 130 x 130 x 130 to 600 x 400 x 400 [mm] (L x W x H).

Watch the video if you want to see the automatic aggregation unit (and collecting table) in motion and operational.
