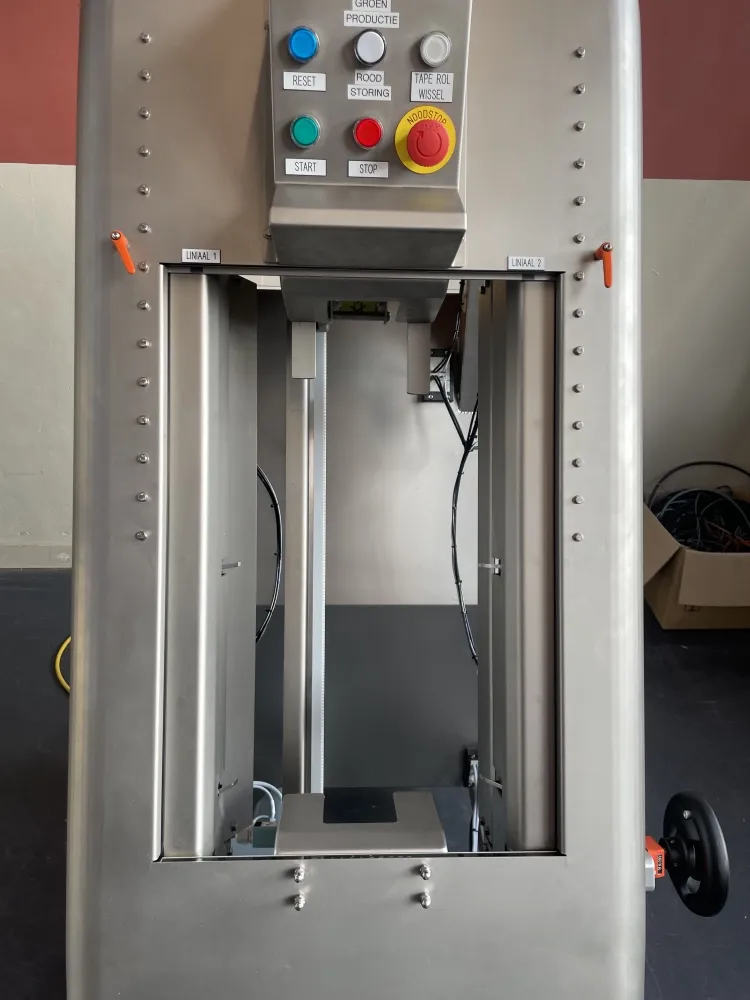

Case erecting machine
Key Features
- Medical operator complaints belong to the past: RSI, frozen shoulder, tennis elbow, sick operator and many others…
- Automatic case bottom folding.
- Automatic sealing the case with tape.
- Adjustable for small and big shippers/cases.
Length 30 to 60 [cm], width 20 to 40 [cm]. - Specially developed to be placed in existing production rooms where there is no space for a standard case erecting machine.
- Small footprint. Length 105 and width 64 [cm].
- Tape roll change within one minute.
- Up to 8 shippers/cases per minute.
- The shipper case is placed on an ergonomic angle and can be loaded easily while still in the machine.
- Patent pending.
You often see operators manually fold and tape the bottom of a case, many times a day. This may result to sick employees, production loss, and healthcare costs. This case erecting machine prevents these medical complaints.

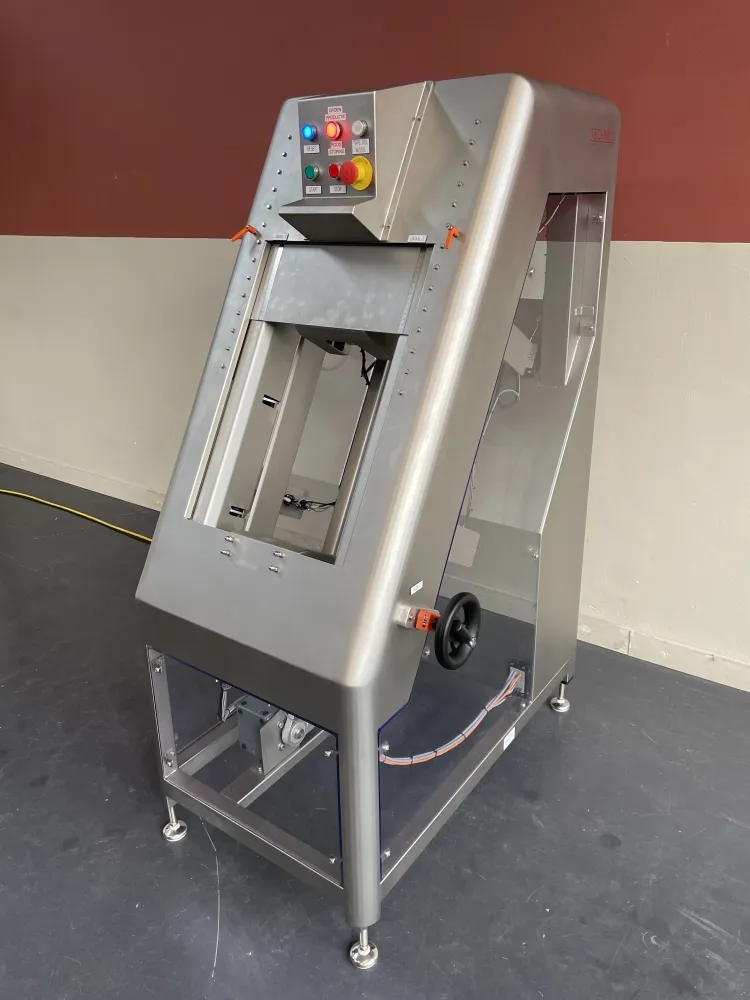

This semi-automatic case fold and tape device has been specially developed to be placed in existing production rooms where there is no space for a standard case erecting machine. The shipper case is placed on an ergonomic angle and can be loaded easily while still in the machine. The machine floor space is only 105x64 [cm]. Half the size of a Euro pallet. The height is 164 [cm], so you can look over the machine. Different sizes of cases can be processed by the semi-automatic case fold and tape device. Length 30 to 60 [cm], width 20 to 40 [cm]. When the tape roll is empty it can be changed easily within one minute. A light curtain is added to meet the strict safety requirements.

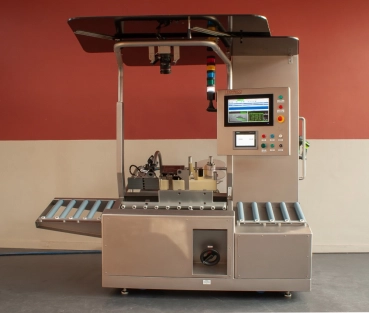

This case erecting machine is the perfect fit between the Technico collecting conveyor and the roll-on roll-off aggregation unit.
Design Options
- Bigger or smaller case sizes if needed.
- Ordered with ergonomic height adjustment.
- Ordered as a mobile version, which can be used on different production lines.
This case fold and tape device from Technico Pharmaceutical Engineering can be customized to meet your specific requirements. This includes a different dimensions of carton, other tape, safety circuit and components. Technico can provide full documentation with the machine upon request.
Please feel free to contact us so we can discuss the possibilities for your specific needs.
